Versatile Charging Capabilities Up to 480kW Output
Up to 480kW output power, multiple power module compatible installation design, adaptable to various capacity requirements, fulfilling diverse functional demands including single charging, simultaneous charging, alternate charging, and super charging compatible with dual-gun setups.
–Up to 480kW output power capability
–Compatibility with multiple power modules for varied capacities
–Accommodation of diverse charging functionalities
Efficient Single-Phase AC Cabinet for Streamlined Installation
Three-phase AC input, simplifying input lines and distribution switches; single-cabinet structure, reducing floor space, and lowering transportation costs; forklift and hoisting transportation, stand/floor installation, cables go in and out from below.
–Simplified input lines & distribution switches
–Single-cabinet design, reducing floor space
–Ground-level installation with efficient cable management
Versatile Charging Capabilities Up to 480kW Output
- Up to 480kW output power capability
- Compatibility with multiple power modules for varied capacities
- Accommodation of diverse charging functionalities
Efficient Single-Phase AC Cabinet for Streamlined Installation
- Simplified input lines & distribution switches
- Single-cabinet design, reducing floor space
- Ground-level installation with efficient cable management
Versatile Charging Options with Comprehensive Safety Measures
Multiple charging mode selection, comprehensive safety protection measures, IP54 protection rating, working noise level below 65 decibels, payment via QR code or card swipe, convenient and efficient human-machine interaction.
–Multiple charging mode options
–Comprehensive safety protection (IP54 rating)
–Low operational noise (<65 decibels), convenient payment options
Versatile Charging Options with Comprehensive Safety Measures
- Multiple charging mode options
- Comprehensive safety protection (IP54 rating)
- Low operational noise (<65 decibels), convenient payment options
Models
Models
EXPol
Improved charging speed to maximum your business
Up to 160kW output power
Classic exterior design
Multiple Charge Mode
Basic Parameters
Dimensions
700*542*1500mm (W*D*H)
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
30kW*2/40kW*2/30kW*4/40kW*4
Installation
Floor/Ground
Electrical Parameters
Output Power
60kW/80kW/120kW/160kW
Connector
DC Charging: GB/T up to 1000V/250A
Frequency
50Hz/60Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Executive Standard
IEC 61851; IEC 62196; ISO 15118; DIN 70121
Operating Temperature and Noise
-40~70℃/<65dB
EXPol
Improved charging speed to maximum your business
✔ Up to 160kW output power
✔ Classic exterior design
✔ Multiple Charge Mode
Basic Parameters
Dimensions
700*542*1500mm (W*D*H)
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
30kW*2/40kW*2/30kW*4/40kW*4
Installation
Floor/Ground
Electrical Parameters
Output Power
60kW/80kW/120kW/160kW
Connector
DC Charging: GB/T up to 1000V/250A
Frequency
50Hz/60Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Executive Standard
IEC 61851; IEC 62196; ISO 15118; DIN 70121
Operating Temperature and Noise
-40~70℃/<65dB
DriNEX
The 32-inch advertising display screen adds extra revenue to your charging service.
High power fast charging
32″ Advertising sreen
Multiple Charge Mode
Basic Parameters
Dimensions
965*560*1650mm
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
40kW*2/30kW*4
Installation
Floor/Ground
Electrical Parameters
Output Power
80kW/120kW
Connector
DC Charging: GB/T up to 1000V/250A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Operating Temperature and Noise
-40~70℃/<65dB
DriNEX
Super power for charging the EVs and minimum the time
High power fast charging
32″ Advertising sreen
Multiple Charge Mode
Basic Parameters
Dimensions
965*560*1650mm
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
40kW*2/30kW*4
Installation
Floor/Ground
Electrical Parameters
Output Power
80kW/120kW
Connector
DC Charging: GB/T up to 1000V/250A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Operating Temperature and Noise
-40~70℃/<65dB

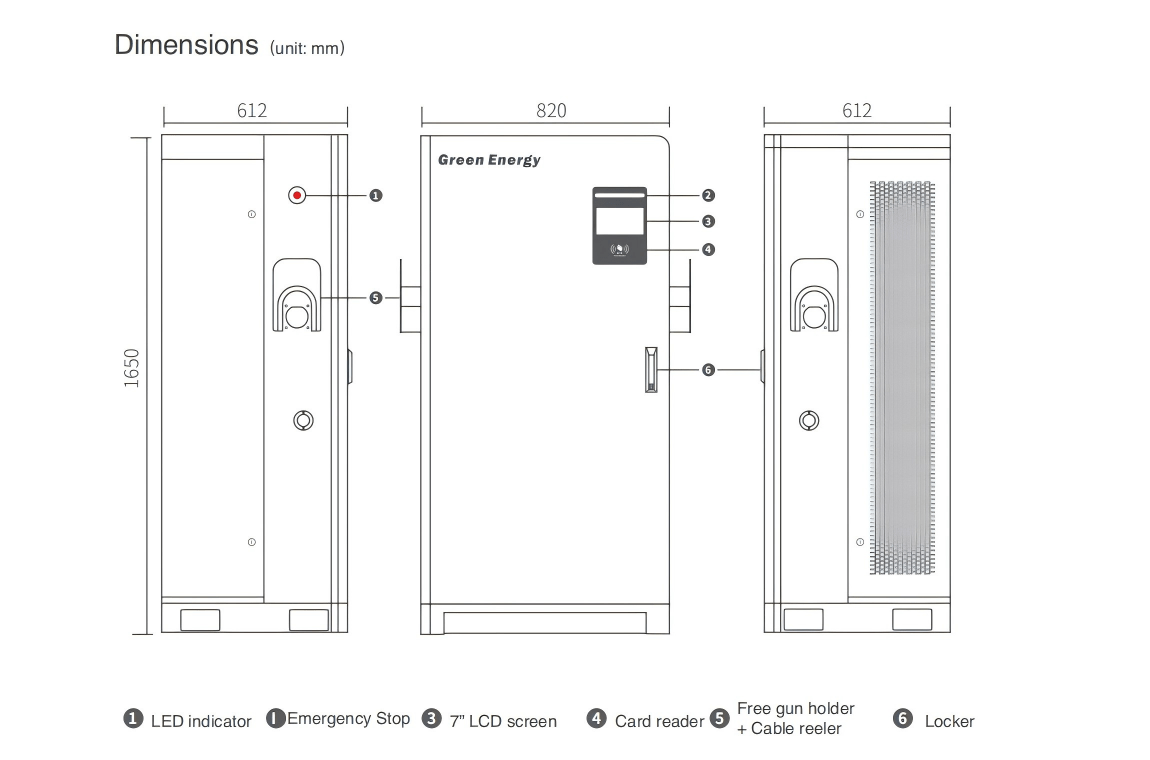

KinKon
Black integrated enclosure with 7" touch screen, wide output power range from 80-360kW
Up to 360kW output power
Limited Dimensions
Multiple Charge Mode
Basic Parameters
Dimensions
820*612*1650mm (W*D*H)
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
40kW*2/30kW*4/40kW*4/30kW*6
Installation
Floor/Ground
Electrical Parameters
Output Power
80kW/120kW/160kW/180kW/240kW
Connector
DC Charging: CCS1/CCS2/GB up to 1000V/250A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Operating Temperature and Noise
-40~70℃/<65dB
HuPrix
Gaint station for commercal EVs or 800V platform passenger EVs
Up to 480kW output power
Modern Design
Multiple Charge Mode
Basic Parameters
Dimensions
1160*860*1750mm
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
30kW*12/40kW*12
Installation
Floor/Ground
Electrical Parameters
Output Power
360kW/480kW
Connector
DC Charging: GB/T up to 1000V/600A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Executive Standard
IEC 61851; IEC 62196; ISO 15118; DIN 70121
Operating Temperature and Noise
-40~70℃/<65dB
EuroKin
Globle design for CCS1/CCS2 port, come standard with OCPP 1.6-2.x
Up to 400kW output power
IP55 enclosure
PIX payment (POS payment)
Basic Parameters
Dimensions
800*800*1800mm
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
40kW*10/40kW*12
Installation
Floor/Ground
Electrical Parameters
Output Power
80kW/120kW/160kW/180kW/240kW/320kW/360kW
Connector
DC Charging: CCS1/CCS2 up to 1000V/200A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Operating Temperature and Noise
-40~70℃/<65dB
KinKon
Black integrated enclosure with 7" touch screen, wide output power range from 80-360kW
Up to 360kW output power
Limited Dimensions
Multiple Charge Mode
Basic Parameters
Dimensions
820*612*1650mm (W*D*H)
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
40kW*2/30kW*4/40kW*4/30kW*6
Installation
Floor/Ground
Electrical Parameters
Output Power
80kW/120kW/160kW/180kW/240kW
Connector
DC Charging: CCS1/CCS2/GB up to 1000V/250A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Operating Temperature and Noise
-40~70℃/<65dB
HuPrix
Gaint station for commercal EVs or 800V platform passenger EVs
Up to 480kW output power
Modern Design
Multiple Charge Mode
Basic Parameters
Dimensions
1160*860*1750mm
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
30kW*12/40kW*12
Installation
Floor/Ground
Electrical Parameters
Output Power
360kW/480kW
Connector
DC Charging: GB/T up to 1000V/600A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Executive Standard
IEC 61851; IEC 62196; ISO 15118; DIN 70121
Operating Temperature and Noise
-40~70℃/<65dB
EuroKin
Globle design for CCS1/CCS2 port, come standard with OCPP 1.6-2.x
Up to 400kW output power
IP55 enclosure
PIX payment (POS payment)
Basic Parameters
Dimensions
800*800*1800mm
Color and Enclosure Materials
White/Powder coated stainless steel
Modules
40kW*10/40kW*12
Installation
Floor/Ground
Electrical Parameters
Output Power
80kW/120kW/160kW/180kW/240kW/320kW/360kW
Connector
DC Charging: CCS1/CCS2 up to 1000V/200A
Frequency
50Hz
Interface and Connectivity
Display
7" Touch LCD Screen
Communication Protocol
OCPP 1.6J
Communication Standard
Wifi/4G/Ethernet
Payment
RFID/QR Code
Safety and Certifications
Encosure Rating
IP54
Safety Protection
Overload, input under/over voltage, output overcurrent/short-circuit, leakage, over-temperature, lightning, antirust, anti-inverse , scram Protection
Operating Temperature and Noise
-40~70℃/<65dB
